PUSH (push)

Basic purpose

The PUSH instruction pushes an operand onto the stack and updates the stack pointer.
In x86/x64, the stack grows toward lower addresses, so PUSH decreases the value of ESP/RSP first, then writes the data to the new top of the stack.

Instruction execution process

Using 64-bit as an example:

1
rsp = rsp - 8
2
[rsp] = 操作数

For 32-bit:

1
esp = esp - 4
2
[esp] = 操作数

Instruction format

The following operands are allowed:

• push r/m16
• push r/m32
• push r/m64
• push imm8 / imm16 / imm32 (in x64, it is sign-extended to 64 bits)

The sign extension of immediate pushes is a unique behavior of PUSH.

Behavioral characteristics

• The stack pointer moves downward
• Writing a value does not clear old memory; it only overwrites it
• Immediate values are sign-extended (push imm32 → 64bit)
• Operands cannot be two memory addresses
• The stack layout changes, affecting function call offset calculations

Equivalent expansion example

1
push rax
2
; 等价于
3
sub rsp, 8
4
mov [rsp], rax

1
push 0x1234
2
sub rsp, 8
3
mov qword ptr [rsp], 0x0000000000001234

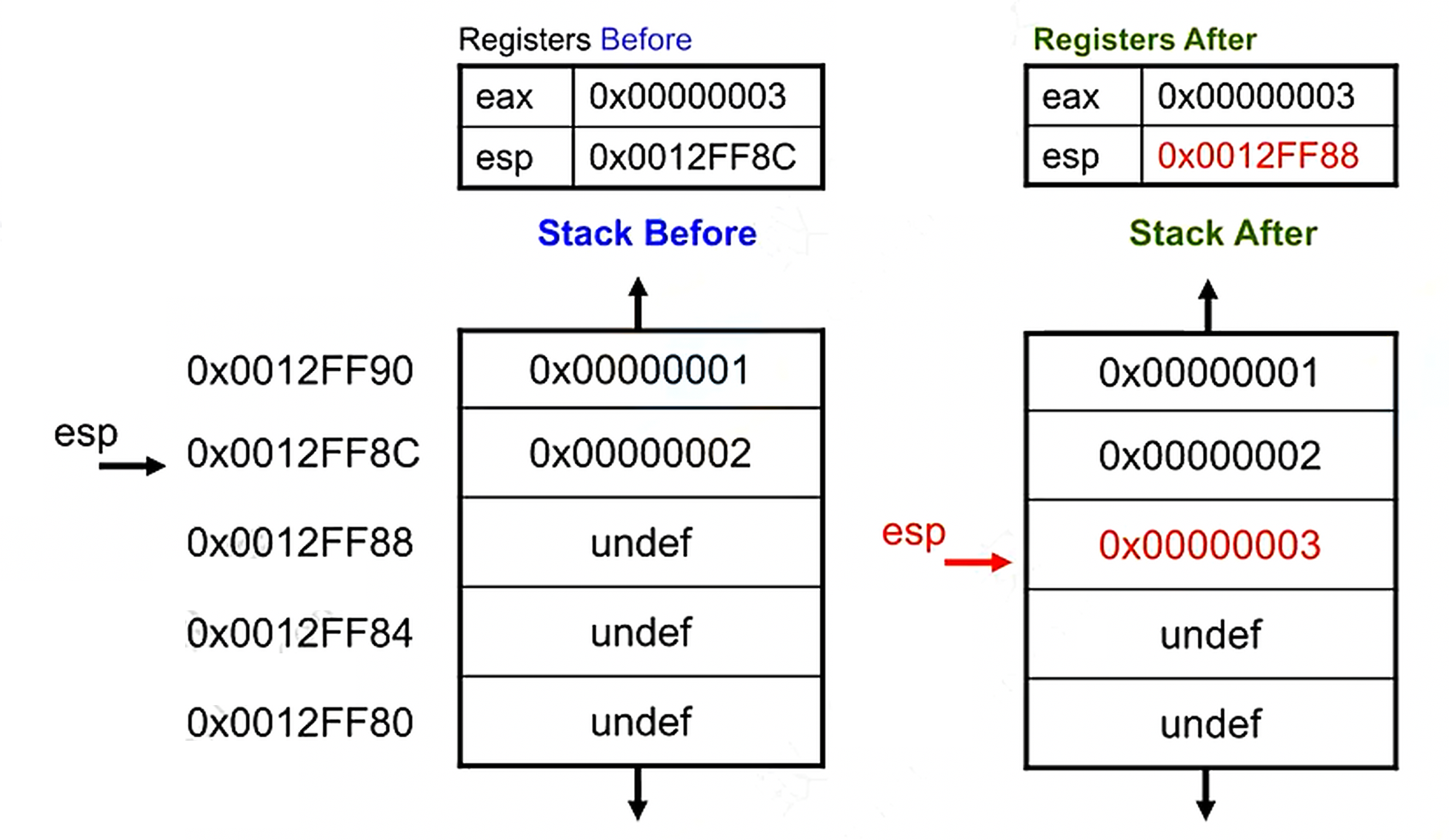

ASCII stack change illustration

Before execution:

1
rsp → +------------------+
2
      |   （旧栈数据）    |
3
      +------------------+

After executing push rax:

1
      +------------------+
2
rsp → |     rax 的值      |
3
      +------------------+
4
      |   （旧栈数据）    |

Common uses

• Save register contents
• Push arguments during function calls
• Align stack space
• Temporarily save data
• In PWN, used to control stack layout and overwrite return addresses
