Binary File Information Gathering Tools

Overview

To do a good job, one must first sharpen one’s tools. In the process of binary code analysis, it is necessary to use some tools to collect information about binary code. This article is used to record some command-line tools for inspecting binary file information. It will include: nm , ldd , strings , ps , strace , ltrace , ROPgadget , objdump , readelf, mainly documenting some potentially useful parameters and explanations of their output.

Tool List

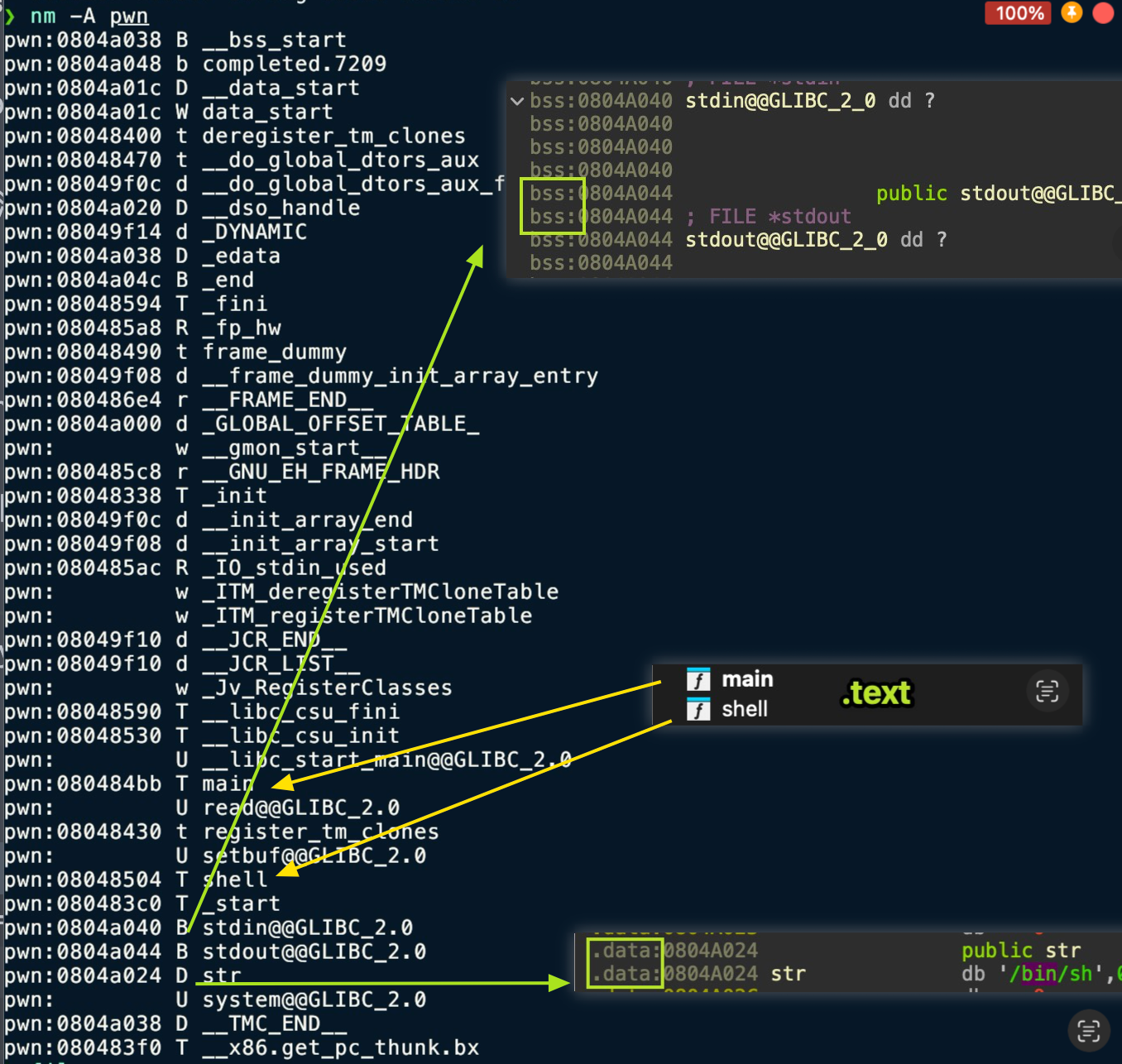

nm

nm is used to inspect the symbol table in a binary file, including functions, global variables, undefined symbols, and so on. In exploit development and reverse engineering, it can be used to find function addresses, determine whether symbols have been stripped, analyze linking, and more.

Common Parameters

• nm <file>
  View the file’s symbol table (by default showing only symbol name + type + address).
• nm -D <file>
  View the dynamic symbol table (.dynsym), suitable for ELF shared libraries and dynamically linked executables.
• nm -g <file> Show only global symbols.
• nm -a <file>
  Show all symbols, including debug symbols.
• nm -S <file>
  Show symbol sizes (the Size field).
• nm -u <file>
  Show only undefined symbols, which are usually dynamic linking dependencies.
• nm --no-sort <file>
  Output symbols in their original order (without sorting by address).

Common Symbol Type Descriptions

The second column in nm output is the symbol type (section type), and the common meanings are as follows:

In PWN, the most commonly used ones are:
T/t: find function locations
U: determine linking dependencies
B/D: analyze global variables and GOT/data structure locations

ldd

ldd is used to inspect which shared libraries an ELF executable will load at runtime, as well as the actual resolved path and base address (load address) of each library. In exploit development, it is used to determine the libc version, check whether a custom loader is used, and identify whether there is a controllable library hijacking scenario.

Common Parameters

• ldd <file>
  View the list of runtime dynamic library dependencies for an ELF file; this is the most commonly used form.
• LD_TRACE_LOADED_OBJECTS=1 <file>
  Equivalent to ldd, but does not actually run the target program, making it safer.

⚠️ Note: In some cases, ldd <file> may actually “execute” the ELF file’s initialization logic, so caution is required when using it on malicious samples.
Recommended usage: `LD_TRACE_LOADED_OBJECTS=1 ./executable

Output Example and Explanation

1
$ ldd ./pwn
2
linux-vdso.so.1 (0x00007fffffffe000)
3
libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007ffff7a0d000)
4
/lib64/ld-linux-x86-64.so.2 (0x00007ffff7dd0000)

Field meanings:

• linux-vdso.so.1: a virtual dynamic shared object provided by the kernel, not a real file
• libc.so.6 => /lib/.../libc.so.6
  the actual resolved path of the shared library
• (0x00007ffff7a0d000)
  the runtime load base address (randomized on each launch under ASLR)

Common Uses in PWN

• Confirm the libc version
  In exploit development, you must know the libc version to match the correct offsets.

• Confirm whether the program uses its bundled libc
  For example:
  libc.so.6 => ./libc-2.31.so This indicates that a dedicated libc is placed in the program directory (common in challenges).

• Check the program’s loader/dynamic linker [Requesting program interpreter: ./ld-2.31.so] → Combine with readelf -l (mentioned later) for further confirmation.

• Debug path issues
  When “not found” appears, it can be used to analyze issues such as incorrect LD_LIBRARY_PATH configuration.

• Library Hijacking analysis
  It can be used to determine whether there is an opportunity to exploit RPATH, RUNPATH, or LD_PRELOAD.

Common Error Messages

1. not found libmylib.so => not found This indicates that the system cannot resolve the library, usually due to a path issue.

2. statically linked not a dynamic executable This indicates that the ELF uses static linking (such as musl builds), so dependencies cannot be inspected with ldd.

strings

strings is used to extract printable strings (ASCII/UTF-8) from binary files, including program string literals, logs, commands, paths, format strings, and so on. In exploit development, it is often used to quickly locate key function names, debug information, sensitive paths, and flag clues.

Common Parameters

• strings <file>
  Scan the entire file for printable strings; the most commonly used form.
• strings -n <num>
  Set the minimum string length (default is 4).
  For example: strings -n 3 a.out
• strings -d <file>
  Extract strings only from the data section.
• strings -e <enc>
  Specify the encoding (such as s=7bit, S=8bit, b=big-endian, l=little-endian).
• strings -t x <file>
  Display the offset of the string in the file before outputting it (hexadecimal).
  Commonly used to locate string positions together with reverse engineering.

Common Output Type Descriptions

The information that strings can extract includes but is not limited to:

Example Output Explanation

1
$ strings ./pwn
2
/bin/sh
3
Enter your input:
4
Correct!
5
GLIBC_2.31
6
puts
7
system

Analysis:

• /bin/sh → If this string appears in the program, there may be a call related to system(“/bin/sh”)
• Enter your input: → Program I/O stream, corresponding to behavior
• GLIBC_2.31 → libc version signature (extremely important)
• puts, system → Dynamically linked symbol names, which can be combined with leaks to build ROP

Common Uses in PWN

• Search for the “/bin/sh” string
  In ROP vulnerabilities, this is used to find the offset of /bin/sh built into libc or the binary.
• Identify potentially dangerous API calls
  Such as: system, sprintf, strcpy, gets, etc. → suggesting potential vulnerability points.
• Find evidence of format string vulnerabilities
  If outputs like "%x", "%p", "%n" appear, they can be further analyzed.
• Quickly locate logic flow
  Determine program behavior through strings such as "Wrong password" and "Try again".
• Confirm libc version signatures
  If the output contains many GLIBC_2.xx strings, they can be used to narrow down the libc version.
• Assist reverse engineering
  Corresponding strings → use IDA/objdump to trace references back and locate key functions.

readelf

readelf is one of the most comprehensive and professional tools for reading ELF format information. It parses ELF structures directly without depending on the system environment. Compared with objdump, readelf is more focused on data presentation, produces more precise output, and is better suited for binary analysis.

It is commonly used to inspect: program headers, section headers, dynamic information, symbol tables, relocation tables, program headers, interpreters (loaders), and more.

Common Parameters

• readelf -h <file>
  View the ELF file header (ELF type, architecture, entry address, etc.).

• readelf -l <file>
  View the Program Headers, including load addresses, dynamic segments, and interpreter information.

• readelf -S <file>
  View the section headers, which can be used to locate .text/.data/.got/.plt, etc.

• readelf -s <file>
  View the symbol table (dynamic symbols + static symbols).

• readelf -r <file>
  View the relocation table (essential for learning ROP), such as .rela.plt.

• readelf -d <file>
  View the dynamic segment (DT_NEEDED, RPATH, RUNPATH, SONAME, etc.).

• readelf -a <file>
  Output all information.

Output Content Explanation (Key Fields)

1. ELF header (-h)

1
Entry point address:               0x401080
2
Type:                              EXEC (Executable file)
3
Machine:                           Advanced Micro Devices X86-64

• Entry address (possibly useful for ret2text)
• ELF type (EXEC / DYN → PIE determination)
• Architecture (64bit/32bit) Determine whether PIE is enabled:

1
Type:    DYN → PIE 开启
2
Type:    EXEC → PIE 关闭

2. Program Headers (-l)

1
LOAD           0x000000 0x400000 0x400000 0x2000 ...
2
INTERP         /lib64/ld-linux-x86-64.so.2
3
DYNAMIC        0x401dd0 ...
4
GNU_RELRO      0x401000 ...

Key fields:

• INTERP: shows the loader (ld.so)
  → Combine with ldd to confirm whether a bundled loader is used
• LOAD: load segment addresses, reflecting the memory layout
  → For ret2text, pay attention to the starting address of executable segments
• GNU_RELRO / GNU_STACK:
  → Used to determine protections: RELRO, NX, and whether STACK protections are enabled

3. Section Headers (-S)

Mainly used to locate key sections:

1
.text     可执行代码区域
2
.data     可写数据
3
.bss      未初始化变量
4
.plt      Procedure Linkage Table
5
.got      Global Offset Table
6
.got.plt  延迟绑定 GOT
7
.init_array 程序启动时调用（构造函数）
8
.fini_array 程序退出时调用（析构函数）

In PWN:

• .plt is used for ROP calls to functions such as puts/printf
• .got is used for leaking addresses (GOT overwrite)
• .fini_array is used to control the program execution flow —> [[[CISCN 2019 Southwest]PWN1]]

4. Symbol Table (-s)

Example:

1
0000000000401030  system@plt
2
0000000000401040  puts@plt
3
0000000000404020  __libc_start_main

Uses:

• Find actual function / plt locations
• Determine whether certain functions are exported (for example, if there is no system@plt → ret2libc must leak libc)
• Reverse engineer to find function names

Statically linked files will show a large number of symbols here.

5. Dynamic Segment (-d)

Example:

1
(NEEDED)             Shared library: [libc.so.6]
2
(RPATH)              Library rpath: [/home/pwn/lib]
3
(INTERP)             Program interpreter: ./ld-2.31.so

Uses in PWN:

• Determine the libraries the program depends on (cross-check with ldd)
• Whether RPATH/RUNPATH can be exploited to hijack libraries
• Whether a custom loader is used (some challenges use ./ld-2.xx.so)

6. Relocation Table (-r)

1
000000404018  R_X86_64_JUMP_SLOT   puts@GLIBC_2.2.5

Uses in PWN:

• .rela.plt/.plt.got → delayed binding mechanism analysis
• Understand the GOT structure for leaking libc addresses

Common Uses in PWN (Summary)

• Determine protections such as PIE / NX / RELRO
  (ELF header + Program headers)

• Locate GOT / PLT
  Used for ret2plt / address leaks

• View the loader (interpreter)
  Determine whether bundled ld is needed for debugging

• Confirm dynamic library dependencies, RPATH/RUNPATH
  Used for library hijacking exploitation

• View the symbol table
  Determine functions that can be directly used in ROP (such as whether system@plt exists)

• Locate the entry point, segment offsets, and code layout
  Used to construct attack payloads
